Rotary Dryer
Categories：Dryer
The Rotary Dryer is widely used in mining, metallurgy, building materials, chemical, and other industries. It is suitable for continuous drying of ores, mineral powders, coal, limestone, clay, wood chips, and other materials. It features large processing capacity and strong adaptability to different materials.
The Rotary Dryer is widely used in mining, metallurgy, building materials, chemical, and other industries. It is suitable for continuous drying of ores, mineral powders, coal, limestone, clay, wood chips, and other materials. It features large processing capacity and strong adaptability to different materials.
| 型号 Model | 筒体直径 Diameter (m) | 长度 Length (m) | 处理能力 Capacity (t/h) | 功率 Power (kW) |
| Φ1.2×8 | 1.2 | 8 | 1.9–2.4 | 7.5 |
| Φ1.5×12 | 1.5 | 12 | 4–6 | 15 |
| Φ2.2×14 | 2.2 | 14 | 10–15 | 30 |
| Φ2.8×18 | 2.8 | 18 | 20–30 | 55 |
| Φ3.2×20 | 3.2 | 20 | 30–45 | 75 |

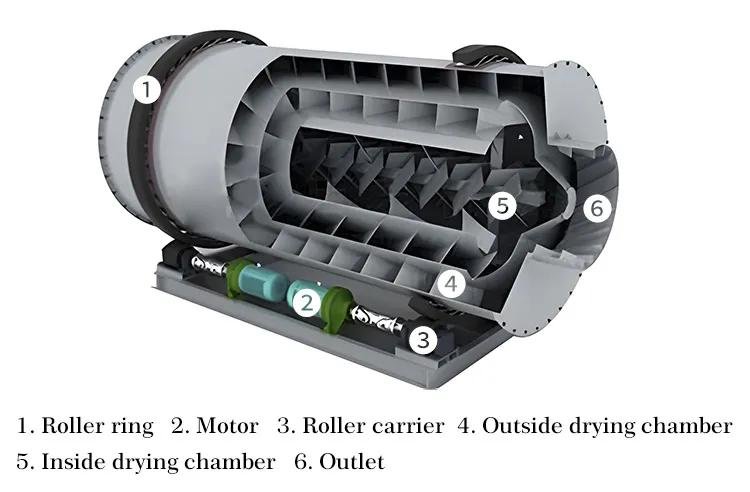

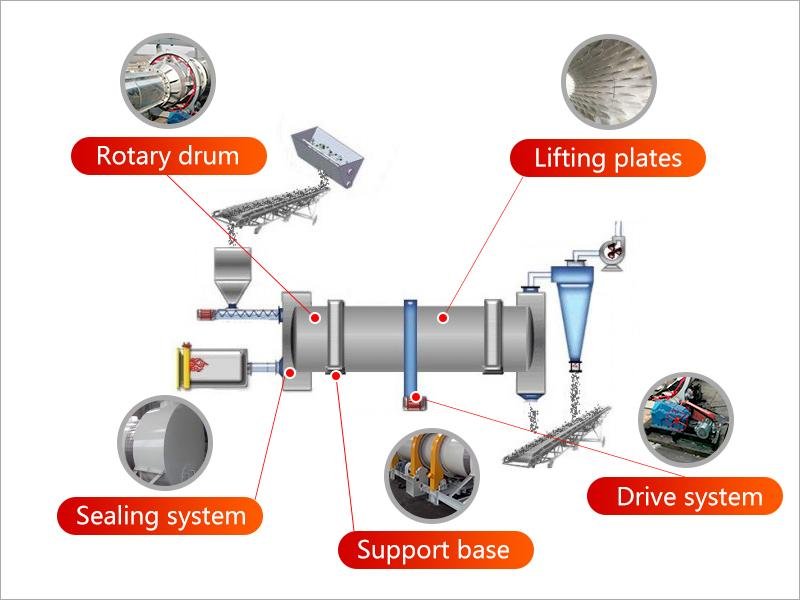

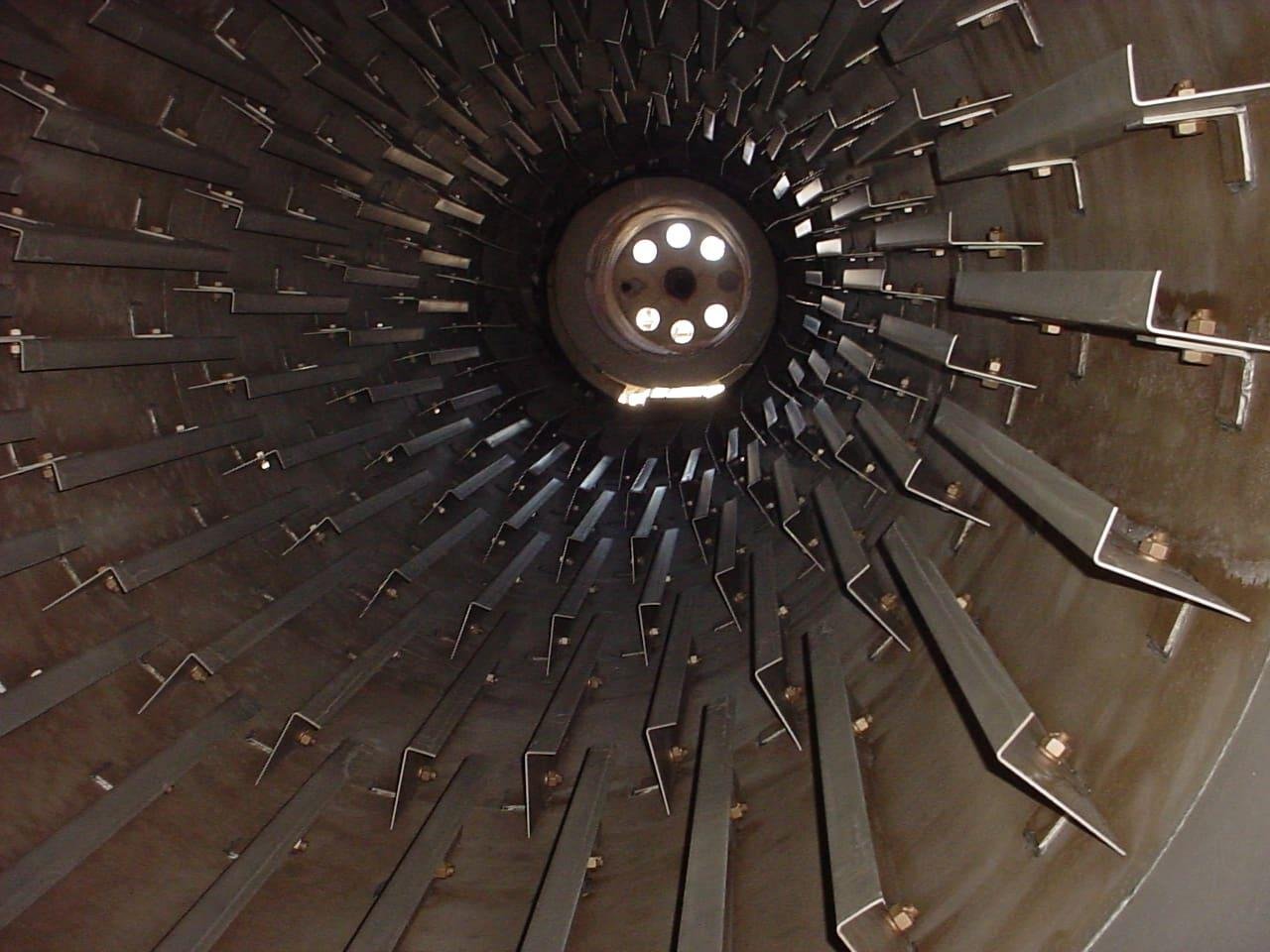

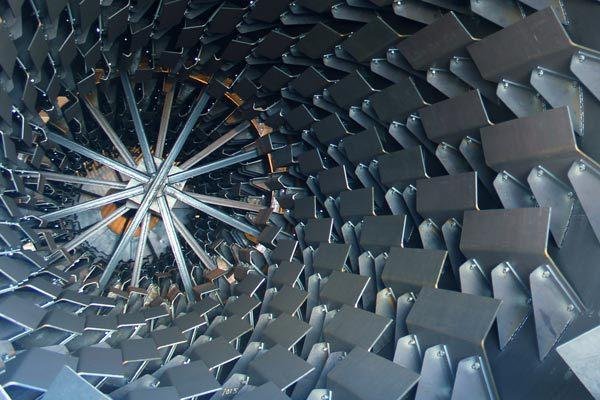

The material enters the rotating drum through the feed end. Lifting flights continuously lift and scatter the material, allowing it to come into full contact with the hot air. This provides rapid and uniform drying before the dried material is discharged through the outlet.
