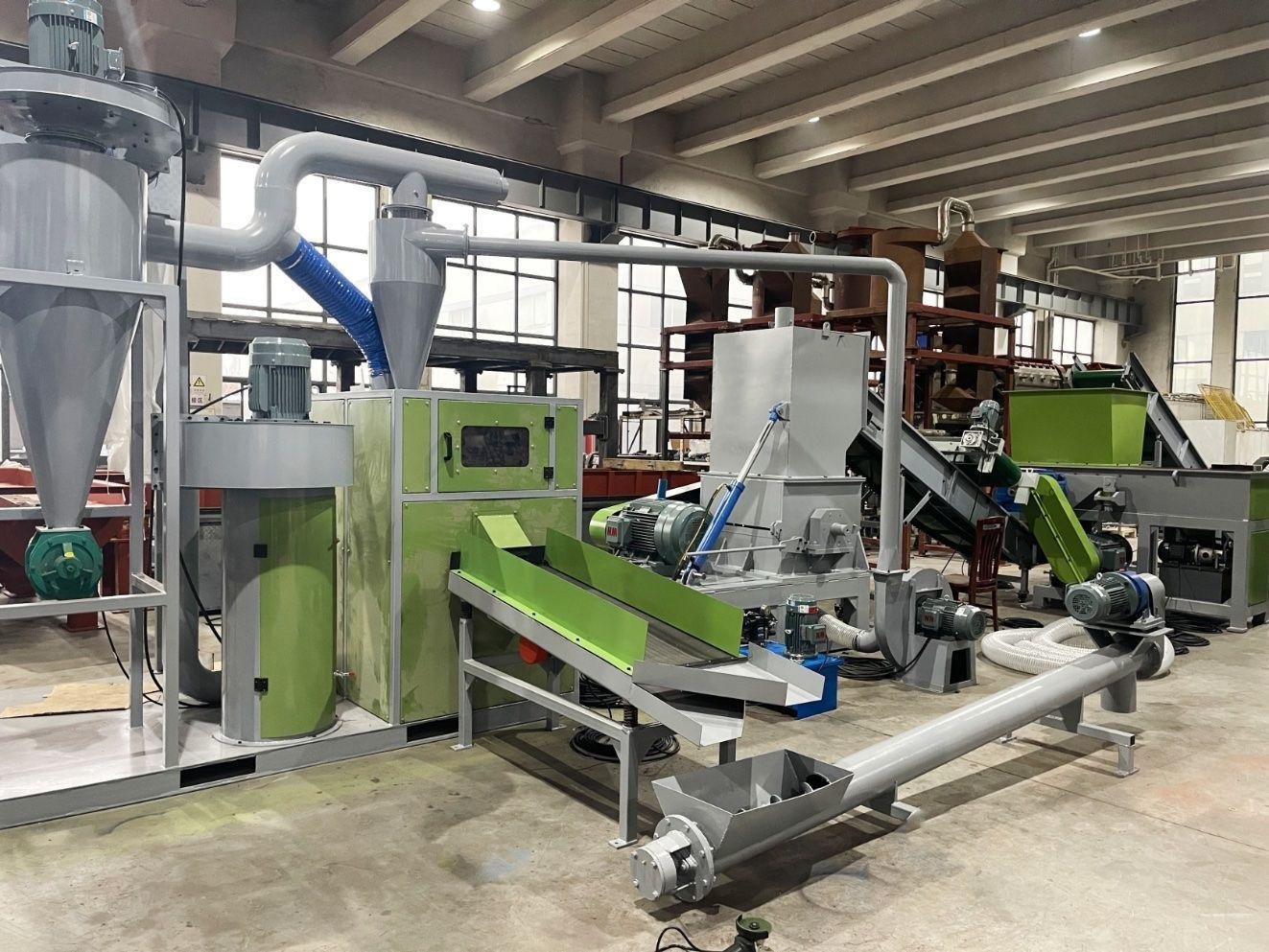

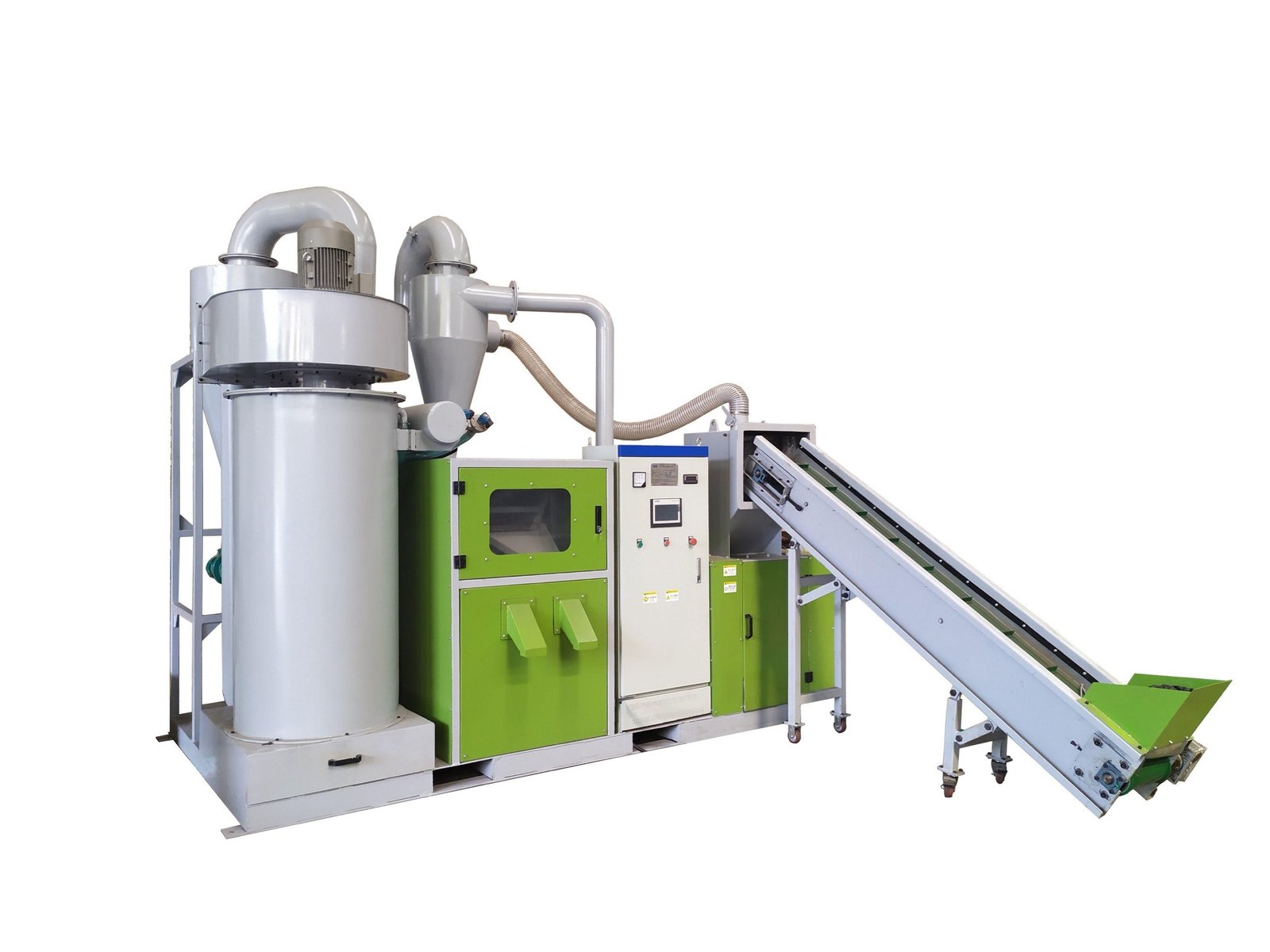

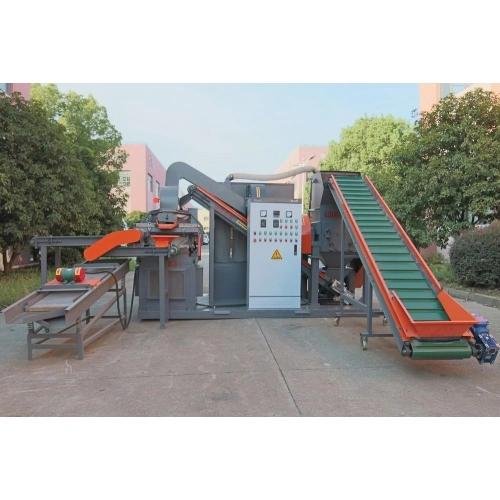

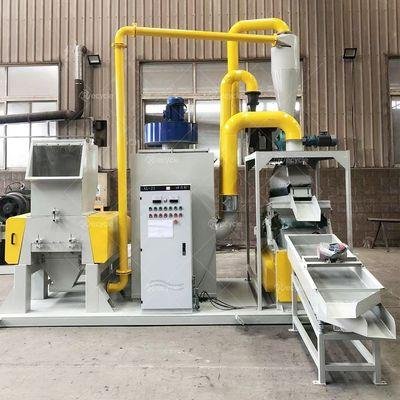

Copper Wire Recycling Machine
Categories：Environmental Machinery
The Copper Wire Recycling Machine, also known as a copper wire separator, uses a dry physical separation process. Through crushing, air separation, and vibrating screening, it efficiently separates copper from plastic insulation in waste wires and cables. Copper recovery can reach over 99%. No water is required, making the process environmentally friendly and water-saving. It is widely used for waste cable recycling, automotive dismantling, electrical appliance recycling, and the recycling industry.
The Copper Wire Recycling Machine, also known as a copper wire separator, uses a dry physical separation process. Through crushing, air separation, and vibrating screening, it efficiently separates copper from plastic insulation in waste wires and cables. Copper recovery can reach over 99%. No water is required, making the process environmentally friendly and water-saving. It is widely used for waste cable recycling, automotive dismantling, electrical appliance recycling, and the recycling industry.
| 参数 Parameter | 400 | 600 | 800 | 1000 |
| 功率 Power | 18.5 kW | 45 kW | 45–55 kW | 65 kW |
| 电压 Voltage | 380 V | 380 V | 380 V | 380 V |
| 重量 Weight | 1,800 kg | 3,500 kg | 4,000 kg | 4,600 kg |
| 尺寸 Dimensions | 2000×1850×2600 mm | 4200×1900×3800 mm | 4500×2000×4000 mm | 5180×2100×4200 mm |
| 型号 Model | 每小时产量 Capacity |
| 400型 / 400 Model | 100–150 kg/h |
| 600型 / 600 Model | 300–400 kg/h |
| 800型 / 800 Model | 500–600 kg/h |
| 1000型 / 1000 Model | 800–1000 kg/h |
PLC自动控制
Copper-plastic separation rate of up to 99%
Dry separation with no wastewater discharge
PLC automatic control
Equipped with a dust removal system
Low energy consumption and easy maintenance
Suitable for automotive wiring harnesses, communication cables, household appliance wires, and various waste cables
