Wood Crusher Machine
Categories：Environmental Machinery

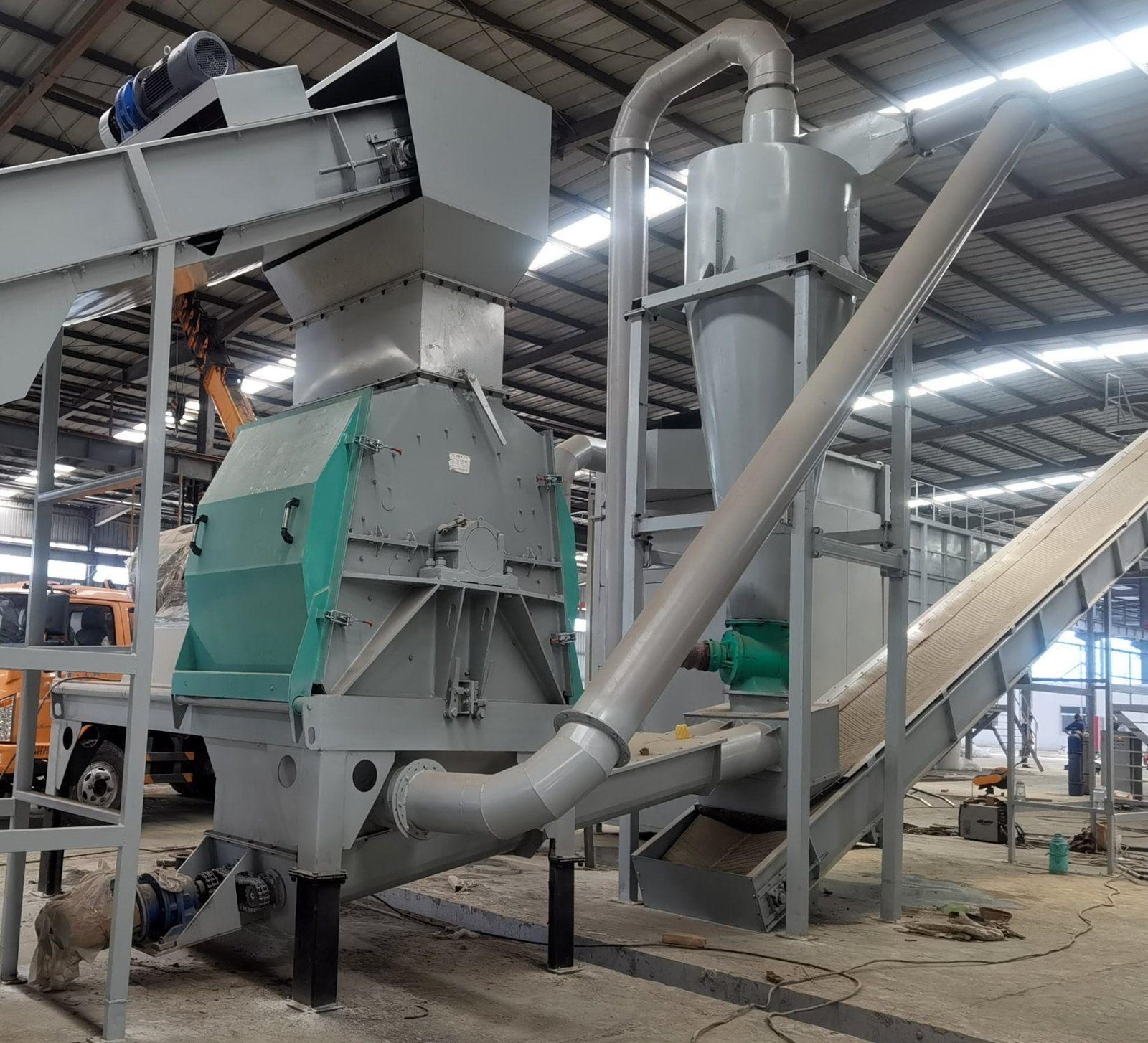

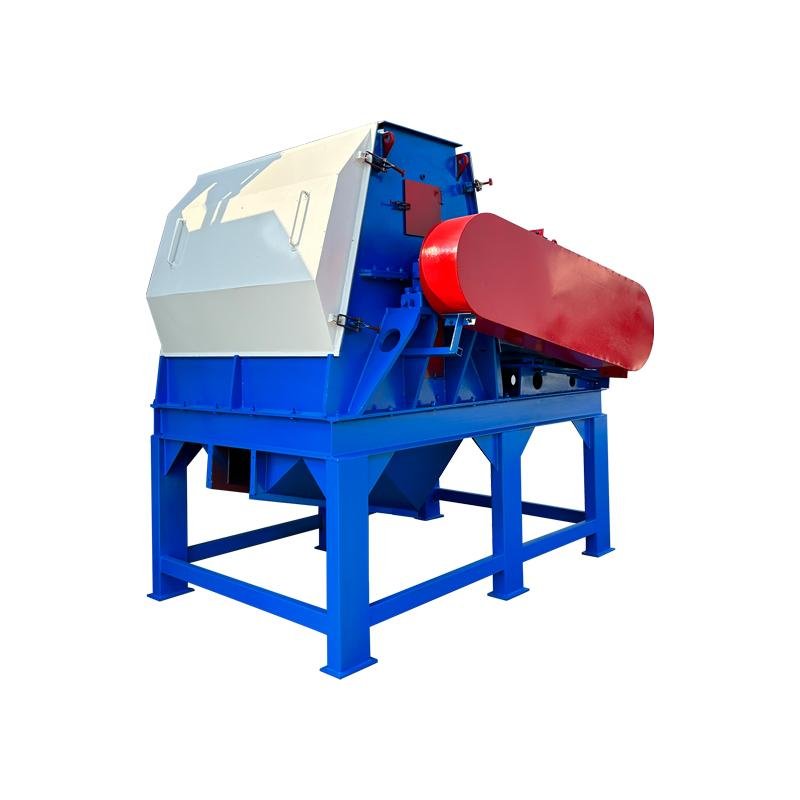

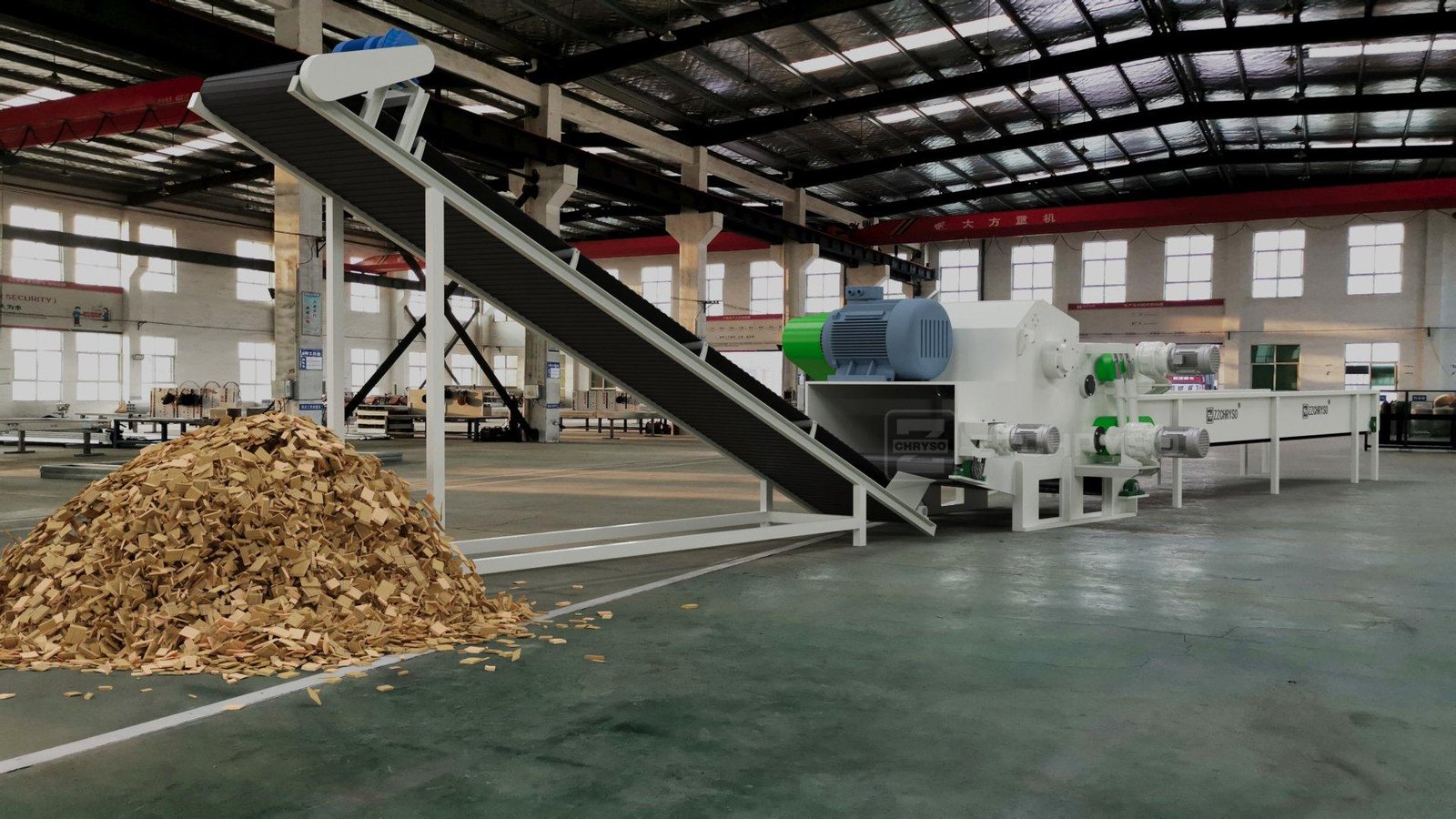

The Wood Crusher Machine is an efficient size-reduction machine for wood processing and biomass fuel production. It can crush logs, branches, wood boards, wooden pallets, construction wood waste, bamboo, and other materials into wood chips, wood shavings, or sawdust.
The Wood Crusher Machine is an efficient size-reduction machine for wood processing and biomass fuel production. It can crush logs, branches, wood boards, wooden pallets, construction wood waste, bamboo, and other materials into wood chips, wood shavings, or sawdust.
The machine uses high-speed rotating blades or hammer structures for cutting, impact, and grinding. It is widely used in biomass pellet production, charcoal production, papermaking, board manufacturing, and garden waste processing.
Powerful crushing for various types of wood
Wear-resistant high-manganese steel blades
Large feed inlet for large-sized wood
Adjustable output particle size
Dust removal system for cleaner operation
Simple structure and easy maintenance
Can be integrated with pellet and charcoal production lines
| 参数 Parameter | 600型 / 600 Model | 800型 / 800 Model | 1000型 / 1000 Model |
| 设备型号 Model | Wood Crusher | Wood Crusher | Wood Crusher |
| 主电机功率 Motor Power | 22–30 kW | 37–55 kW | 75–90 kW |
| 刀盘直径 Disc Diameter | 600 mm | 800 mm | 1000 mm |
| 刀片数量 Number of Blades | 4–8 | 6–12 | 8–16 |
| 转速 Speed | 1800–2500 rpm | 1800–2200 rpm | 1600–2200 rpm |
| 出料尺寸 Output Size | 3–10 mm | 3–10 mm | 3–10 mm |
| 重量 Weight | 1–2 t | 3–5 t | 6–8 t |
| 型号 Model | 处理能力 Capacity |
| 420型 / 420 Model | 300–500 kg/h |
| 600型 / 600 Model | 800–1500 kg/h |
| 800型 / 800 Model | 1500–3000 kg/h |
| 1000型 / 1000 Model | 3000–5000 kg/h |
| 1300型 / 1300 Model | 5000–8000 kg/h |
Biomass pellet fuel
Charcoal production
Wood particle board production
Papermaking raw material
Organic fertilizer production
Boiler fuel
