Charcoal Making Machine

Name: Charcoal Making Machine
Brand: KUNJI Machinery

Categories：Environmental Machinery

The Charcoal Making Machine is designed to produce eco-friendly charcoal from biomass materials. Through crushing, drying, briquetting, and carbonization, waste biomass such as sawdust, wood shavings, bamboo dust, rice husks, and straw can be processed into high-quality charcoal.

The machine uses high-temperature carbonization technology to recycle waste biomass. The resulting charcoal features long burning time, high calorific value, low smoke, and low ash content. It is widely used for BBQ fuel, industrial fuel, and agricultural applications.

Raw Material → Crushing → Drying → Briquetting → Carbonization → Finished Charcoal

Utilizes waste biomass resources

No chemical additives required

High carbonization efficiency

High level of automation

Energy-saving and environmentally friendly production

Stable finished product quality

Suitable for continuous production

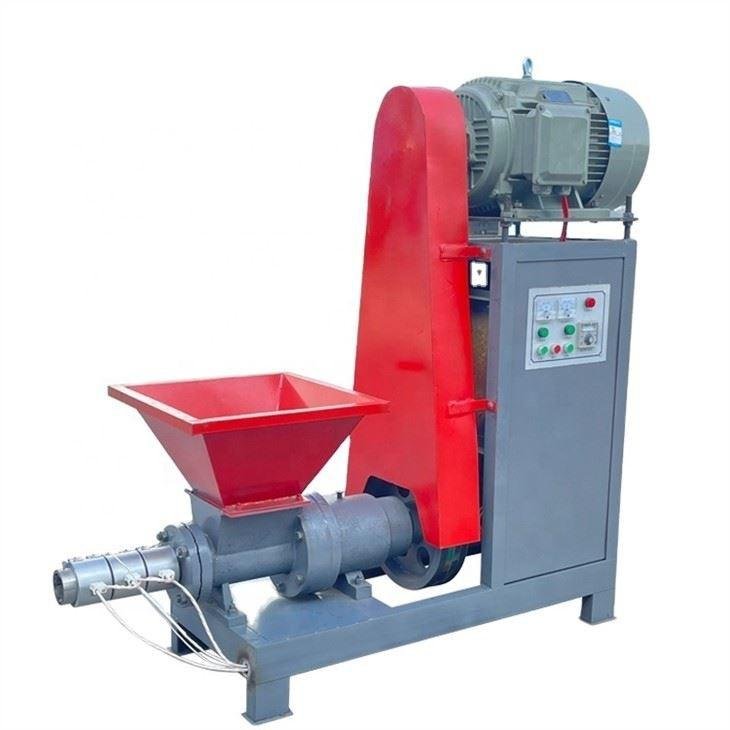

1. 生物质制棒机 Biomass Briquette Machine

型号 Model	功率 Power	产量 Capacity
GCZJ-50	15 kW	150–250 kg/h
GCZJ-70	18.5 kW	300–400 kg/h
GCZJ-80	22 kW	400–600 kg/h
GCZJ-90	30 kW	600–800 kg/h

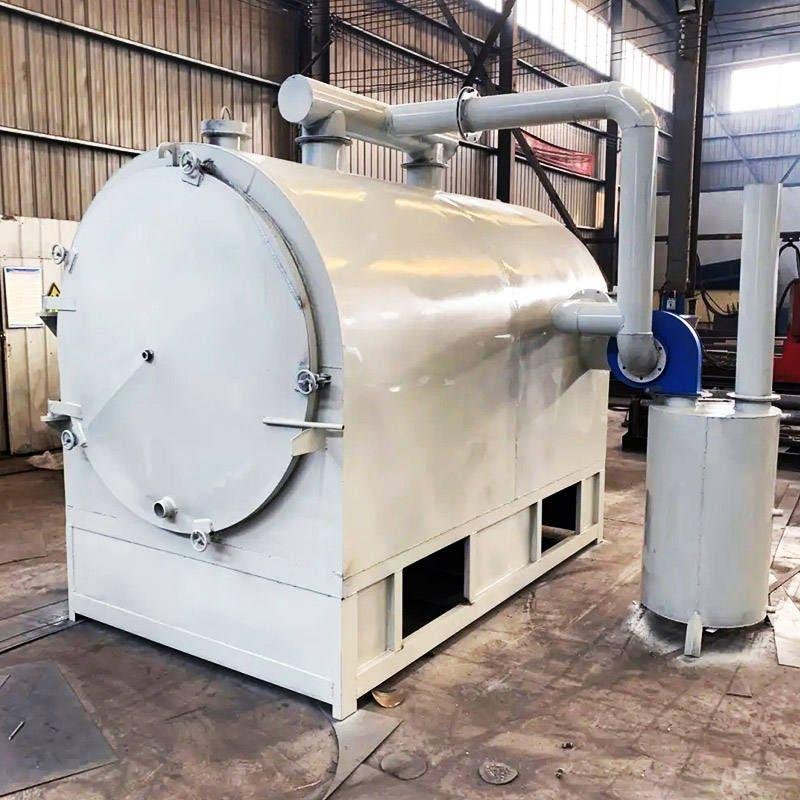

2. 木炭炭化炉 Carbonization Furnace

型号 Model	炭化容量 Carbonization Capacity	处理能力 Capacity
CX-800	800 kg/batch	300–500 kg/day
CX-1000	1000 kg/batch	500–800 kg/day
CX-1200	1200 kg/batch	800–1200 kg/day
CX-1500	1500 kg/batch	1200–2000 kg/day

生产线 Production Line	原料处理量 Raw Material Capacity	成品木炭产量 Charcoal Output
小型线 Small Line	500 kg/h	100–150 kg/h
中型线 Medium Line	1 t/h	200–300 kg/h
大型线 Large Line	2 t/h	400–600 kg/h
自动化生产线 Automatic Line	3–5 t/h	600–1000 kg/h

项目 Item	参数 Specification
原料水分 Raw Material Moisture	≤12%
成品含碳量 Fixed Carbon Content	70%–85%
炭化温度 Carbonization Temperature	400–700°C
燃烧时间 Burning Time	3–6 h
控制方式 Control Mode	自动/半自动 / Automatic or Semi-automatic
加热方式 Heating Method	自燃气循环加热 / Self-generated Gas Circulation Heating
占地面积 Floor Area	根据产量定制 / Customized according to capacity
