VSI Sand Making Machine
Categories：Crusher
Vertical Shaft Impact Crusher / VSI Sand Making Machine
Vertical Shaft Impact Crusher / VSI Sand Making Machine
VSI冲击式破碎机适用于花岗岩、玄武岩、石灰石、河卵石、辉绿岩、铁矿石、尾矿等多种中高硬度物料，是高速公路、高速铁路、水利工程、商品混凝土搅拌站及建筑工程理想的制砂设备。

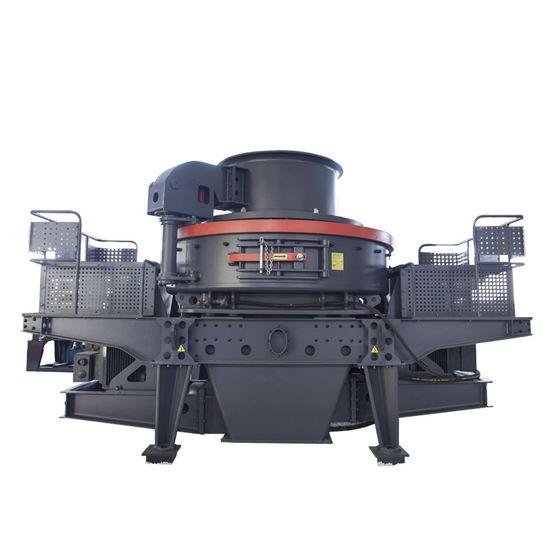

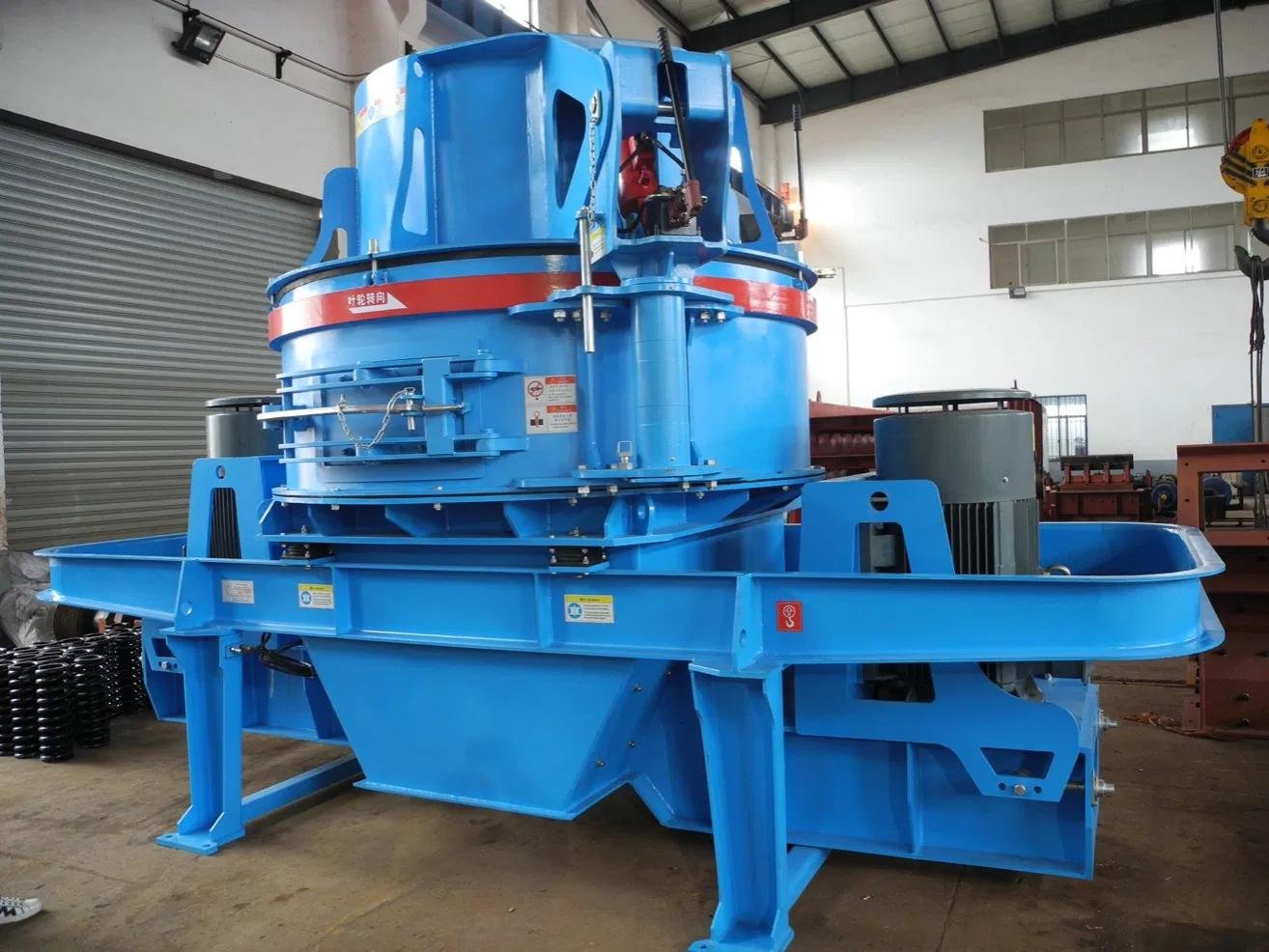

The VSI Vertical Shaft Impact Crusher is an efficient and energy-saving machine for fine crushing and shaping. It is widely used in manufactured sand production, fine ore crushing, and aggregate processing.
The machine adopts two crushing modes: Rock on Rock and Rock on Iron, which can be selected according to different material characteristics. It produces high-quality manufactured sand with excellent particle shape and reasonable gradation.

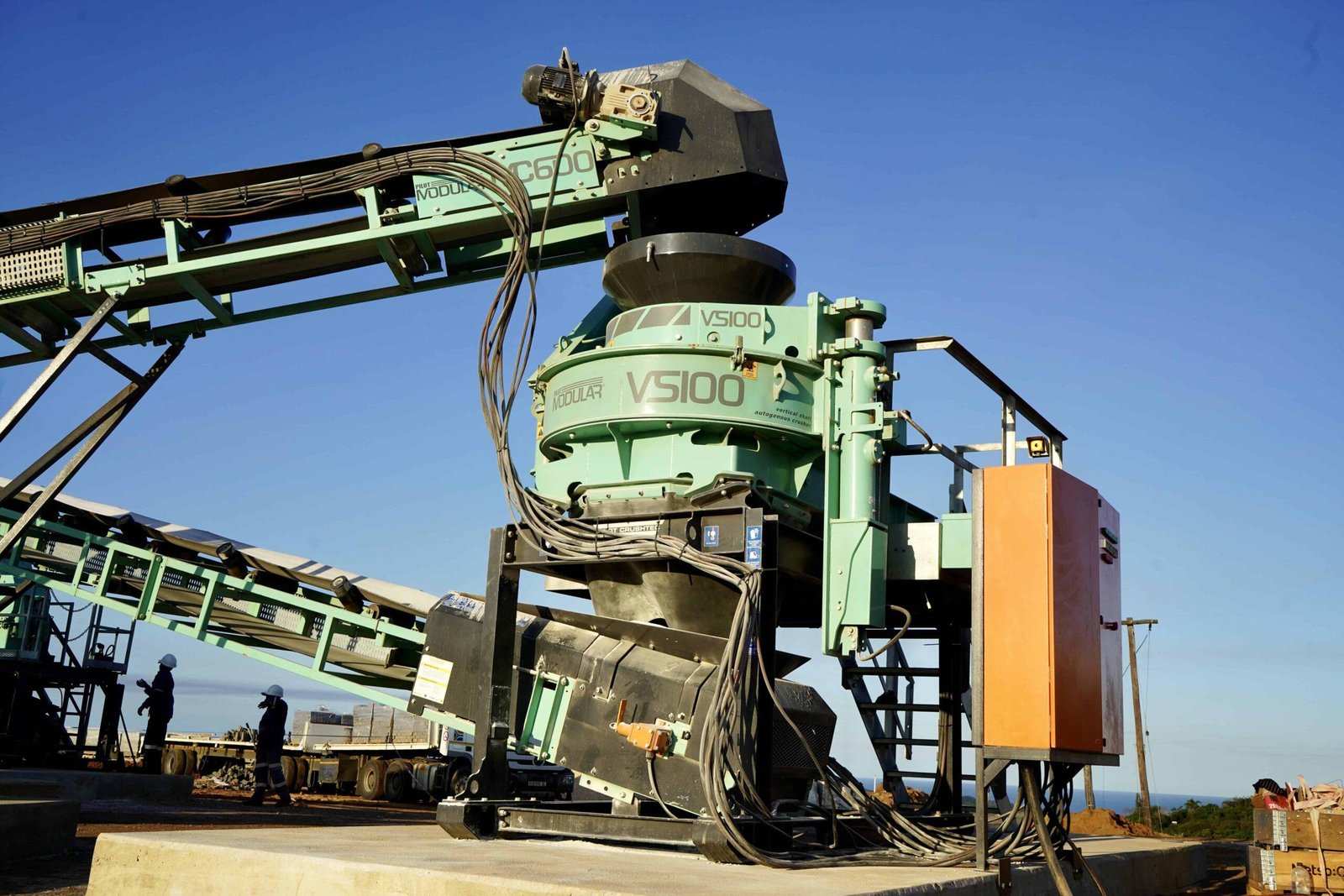

The VSI crusher is suitable for medium- and high-hardness materials such as granite, basalt, limestone, river stone, diabase, iron ore, and mine tailings. It is an ideal sand-making machine for highways, high-speed railways, water conservancy projects, commercial concrete batching plants, and construction projects.
| 型号 Model | 最大进料 Max. Feed Size (mm) | 叶轮转速 Rotor Speed (r/min) | 处理能力 Capacity (t/h) | 电机功率 Motor Power (kW) |
| VSI7611 | ≤35 | 1700–1900 | 60–180 | 110–150 |
| VSI8518 | ≤40 | 1520–1690 | 120–260 | 180–220 |
| VSI9526 | ≤45 | 1360–1510 | 180–380 | 264–320 |
| VSI1140 | ≤50 | 1180–1310 | 250–520 | 400–500 |

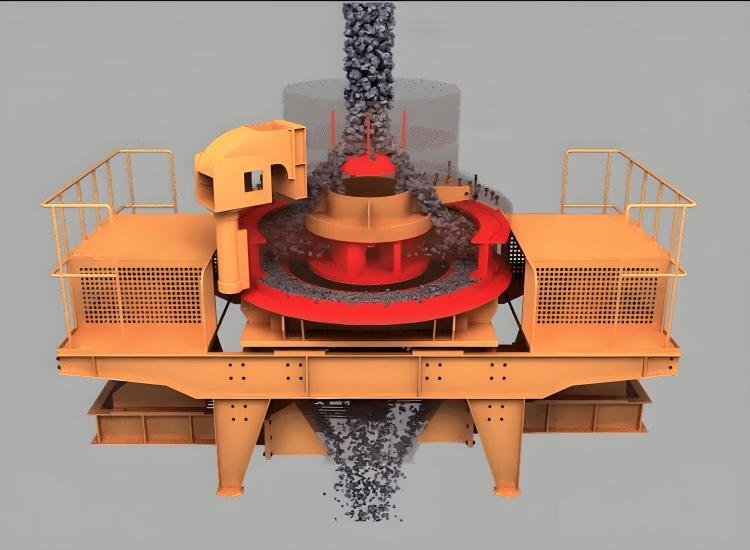

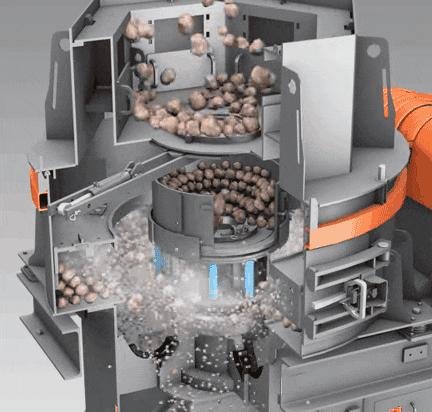

The material enters the high-speed rotating rotor through the feed opening. Driven by centrifugal force, the material is thrown at high speed and collides with the material inside the crushing chamber or the wear-resistant liners.
Through high-speed impact, collision, and friction, the material is finely crushed and shaped. Materials meeting the required particle size are discharged, while oversized materials continue to circulate for further crushing, ensuring uniform particle size and excellent particle shape.
PLC智能控制，实现自动化生产 — PLC intelligent control for automated production
PLC自动控制系统 — PLC Automatic Control System
| 应用场景 Application | 推荐型号 Recommended Model |
| 小型制砂生产线（50–100 t/h） | VSI7611 |
| Small Sand Making Line (50–100 t/h) | VSI7611 |
| 中型制砂生产线（100–250 t/h） | VSI8518 |
| Medium Sand Making Line (100–250 t/h) | VSI8518 |
| 大型制砂生产线（250–400 t/h） | VSI9526 |
| Large Sand Making Line (250–400 t/h) | VSI9526 |
| 超大型制砂生产线（400 t/h以上） | VSI1140 |
| Extra-Large Sand Making Line (400+ t/h) | VSI1140 |
