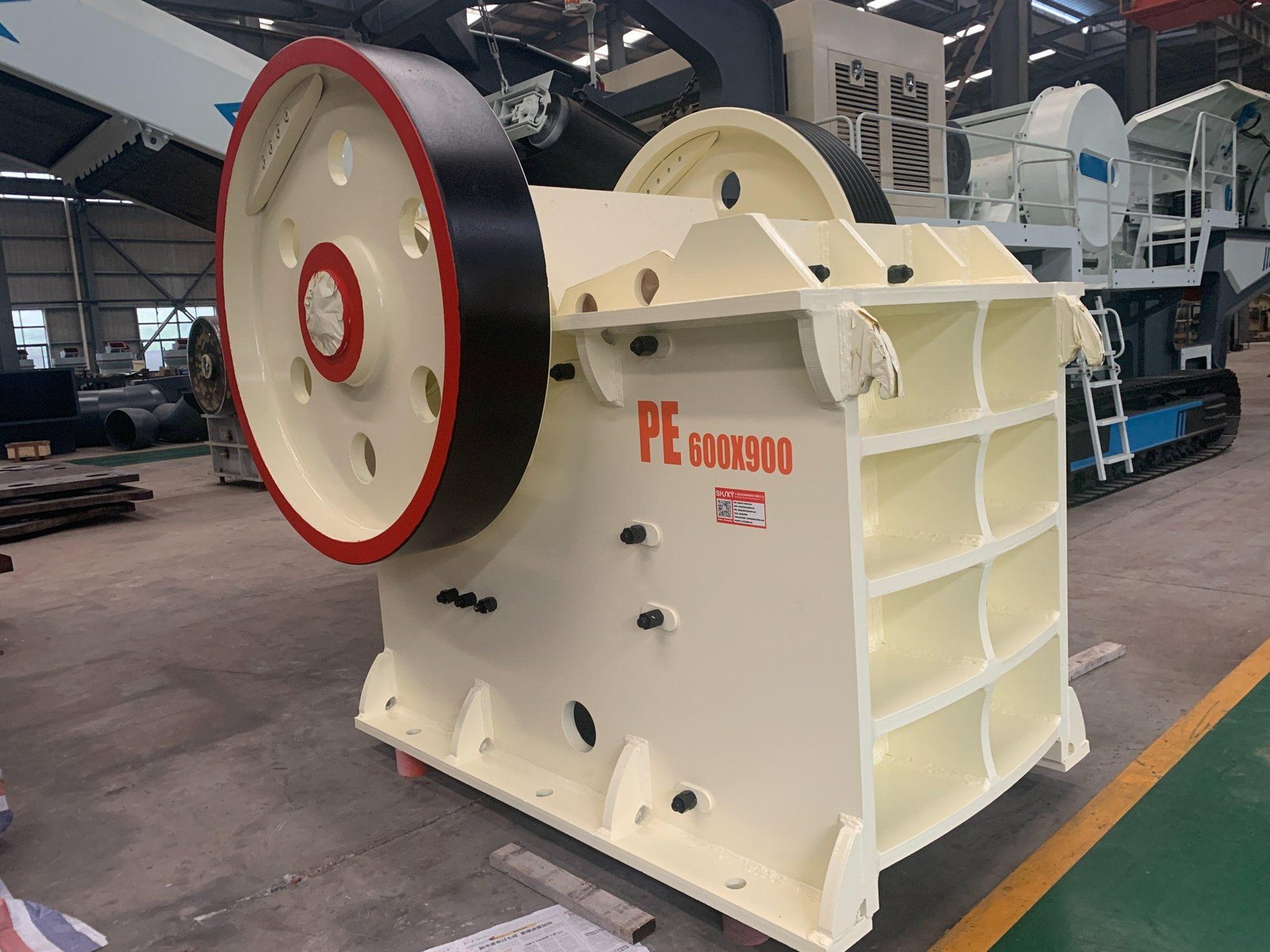

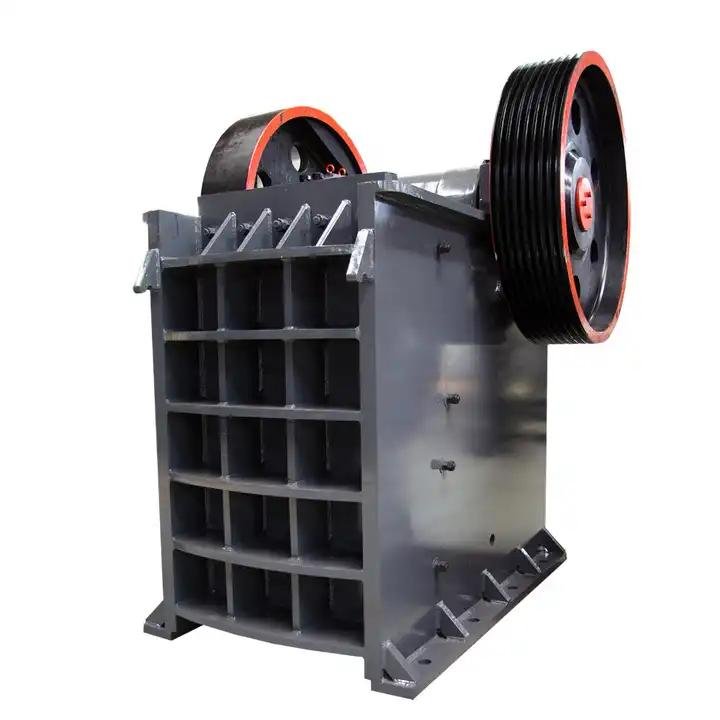

Jaw Crusher
Categories：Crusher
PE系列主要用于粗碎，PEX系列主要用于中碎和细碎，适用于花岗岩、玄武岩、石灰石、河卵石、铁矿石、铜矿石、石英石等多种中高硬度物料。
PE系列主要用于粗碎，PEX系列主要用于中碎和细碎，适用于花岗岩、玄武岩、石灰石、河卵石、铁矿石、铜矿石、石英石等多种中高硬度物料。

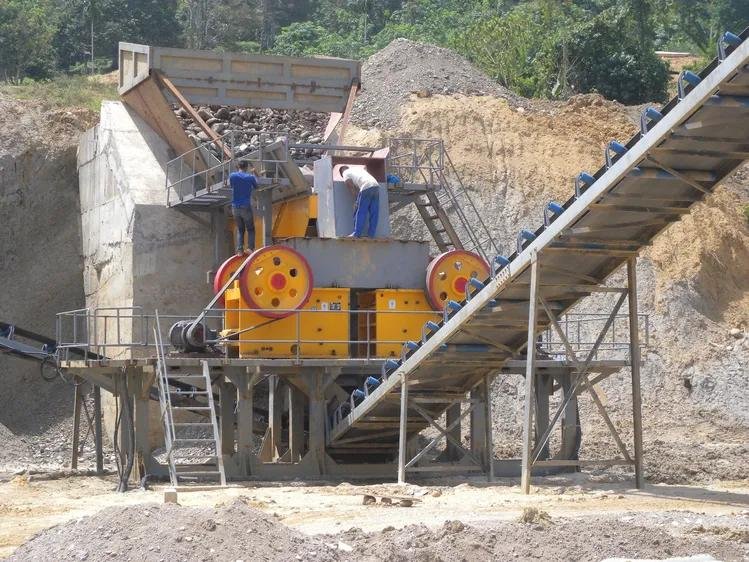

The Jaw Crusher is an efficient primary crushing machine widely used in mining, quarrying, construction, metallurgy, highway, railway, water conservancy, and chemical industries. It crushes large rocks and ores into the required sizes through the compression force between the movable jaw plate and fixed jaw plate. It is an essential piece of equipment for stone crushing plants and mineral processing plants.
The PE series is mainly designed for primary crushing, while the PEX series is suitable for medium and fine crushing. It can process various medium- and high-hardness materials, including granite, basalt, limestone, river stone, iron ore, copper ore, and quartz.
| 中文 | English |
| 破碎比大，生产效率高 | High crushing ratio and high production efficiency |
| V型深腔设计，提高进料能力 | V-shaped deep crushing chamber for higher feeding capacity |
| 成品粒度均匀 | Uniform product size |
| 结构简单，维护方便 | Simple structure and easy maintenance |
| 耐磨件使用寿命长 | Long service life of wear-resistant parts |
| 能耗低，运行稳定 | Low energy consumption and stable operation |
| 排料口调节方便 | Easy adjustment of discharge opening |
| 适用于各种硬度矿石和岩石 | Suitable for rocks and ores of various hardness |
PE系列技术参数 | PE Series Technical Specifications
| 型号 Model | 进料口 Feed Opening (mm) | 最大进料 Max. Feed Size (mm) | 排料口 Discharge Opening (mm) | 产量 Capacity (t/h) | 电机 Motor (kW) |
| PE-250×400 | 250×400 | 210 | 20–60 | 5–20 | 15 |
| PE-400×600 | 400×600 | 340 | 40–100 | 15–60 | 30 |
| PE-500×750 | 500×750 | 425 | 50–100 | 40–110 | 55 |
| PE-600×900 | 600×900 | 500 | 65–180 | 60–180 | 55–75 |
| PE-750×1060 | 750×1060 | 630 | 80–180 | 80–320 | 90–110 |
| PE-900×1200 | 900×1200 | 750 | 95–225 | 140–450 | 110–132 |
| PE-1200×1500 | 1200×1500 | 1020 | 150–350 | 400–800 | 160–220 |
PEX细碎系列 | PEX Fine Crushing Series
| 型号 Model | 最大进料 Max. Feed Size (mm) | 排料口 Discharge Opening (mm) | 产量 Capacity (t/h) | 电机 Motor (kW) |
| PEX-250×750 | 210 | 25–60 | 12–35 | 22 |
| PEX-250×1000 | 210 | 25–60 | 16–52 | 30–37 |
| PEX-250×1200 | 210 | 25–60 | 20–60 | 37 |
| PEX-300×1300 | 250 | 20–90 | 16–105 | 75 |

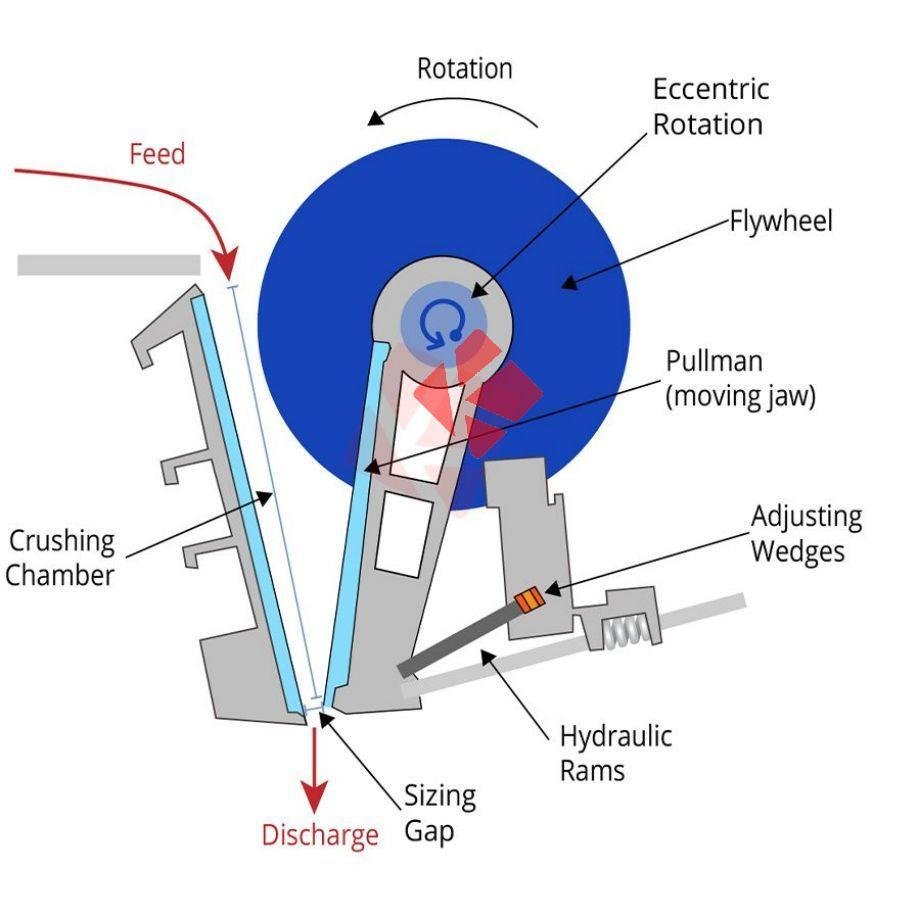

The motor drives the eccentric shaft through a belt, causing the movable jaw plate to move back and forth periodically. The material is crushed through compression, splitting, and bending forces. Once the material reaches the required size, it is discharged through the discharge opening, ensuring continuous and stable production.
