Automatic Brick Making Machine
Categories：Brick Machine
Automatic Brick Making Machine
Automatic Brick Making Machine

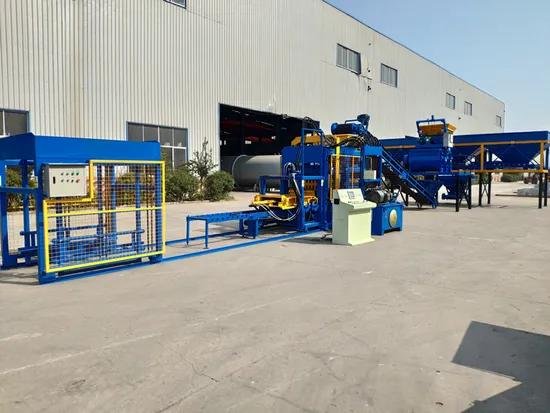

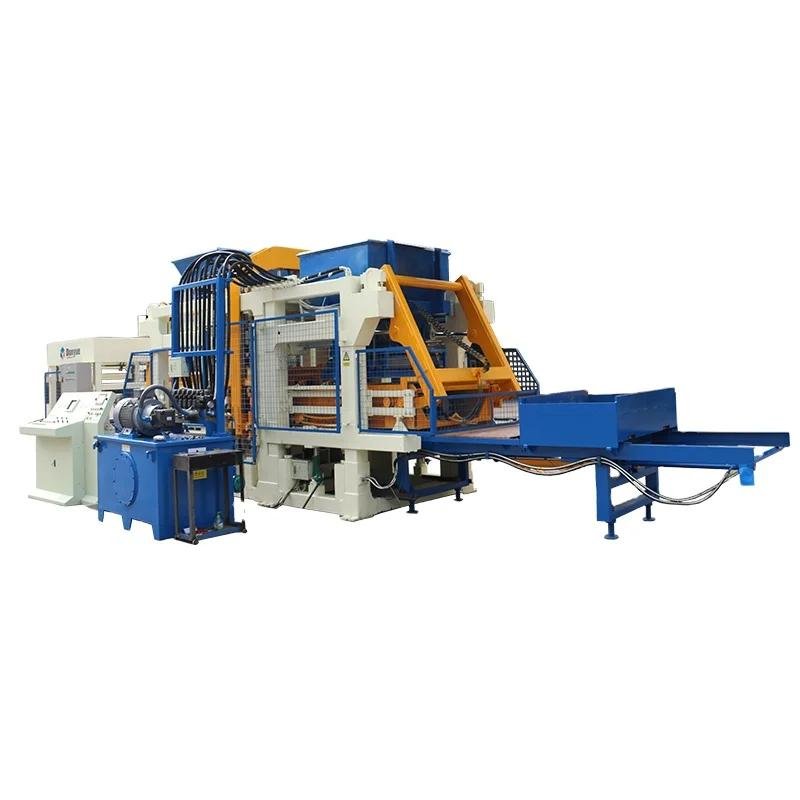

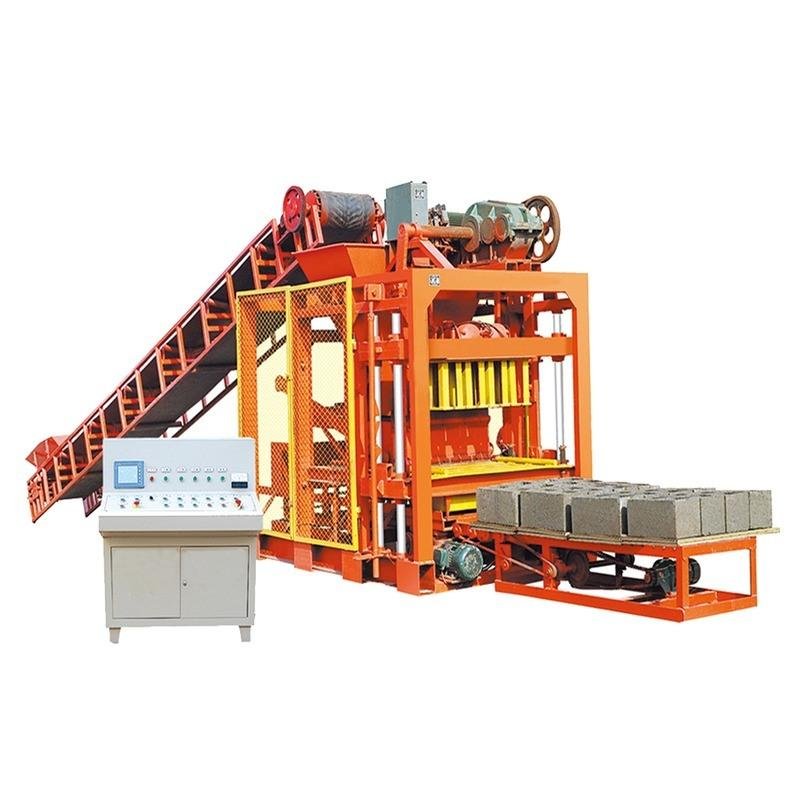

The Automatic Brick Making Machine adopts a PLC intelligent control system and automatically completes feeding, material distribution, pressing, demolding, and conveying. It is suitable for producing hollow blocks, solid bricks, paving blocks, grass-planting bricks, slope protection blocks, and various other concrete products. It features high productivity, a high degree of automation, and stable operation.
PLC智能控制 — PLC intelligent control
| 型号 Model | 每模产量 Production per Mold |
| QT4-15 | 4块空心砖 / 4 hollow blocks |
| QT5-15 | 5块空心砖 / 5 hollow blocks |
| QT6-15 | 6块空心砖 / 6 hollow blocks |
| QT8-15 | 8块空心砖 / 8 hollow blocks |
| QT10-15 | 10块空心砖 / 10 hollow blocks |
| QT12-15 | 12块空心砖 / 12 hollow blocks |
| 参数 Parameter | QT4-15 | QT6-15 | QT8-15 | QT10-15 | QT12-15 |
| 成型周期 Molding Cycle | 15–20 s | 15–20 s | 12–20 s | 12–18 s | 12–18 s |
| 托板尺寸 Pallet Size | 850×550 mm | 900×680 mm | 960×850 mm | 1100×900 mm | 1350×900 mm |
| 装机功率 Installed Power | 28 kW | 36 kW | 45–50 kW | 52 kW | 65 kW |
| 振动方式 Vibration Method | 液压+振动 Hydraulic + Vibration | 液压+振动 Hydraulic + Vibration | 液压+振动 Hydraulic + Vibration | 液压+振动 Hydraulic + Vibration | 液压+振动 Hydraulic + Vibration |
| 整机重量 Machine Weight | 4.5 T | 6.5 T | 8.5 T | 10 T | 12 T |
| 产品规格 Product Size | QT4-15 | QT6-15 | QT8-15 | QT10-15 | QT12-15 |
| 390×190×190 mm 空心砖 / Hollow Blocks | 5,760 | 11,520 | 15,360 | 19,200 | 23,040 |
| 240×115×53 mm 标砖 / Standard Bricks | 28,800 | 57,600 | 80,640 | 100,800 | 120,960 |
| 200×100×60 mm 路面砖 / Paving Blocks | 11,520 | 23,040 | 40,320 | 50,400 | 60,480 |
